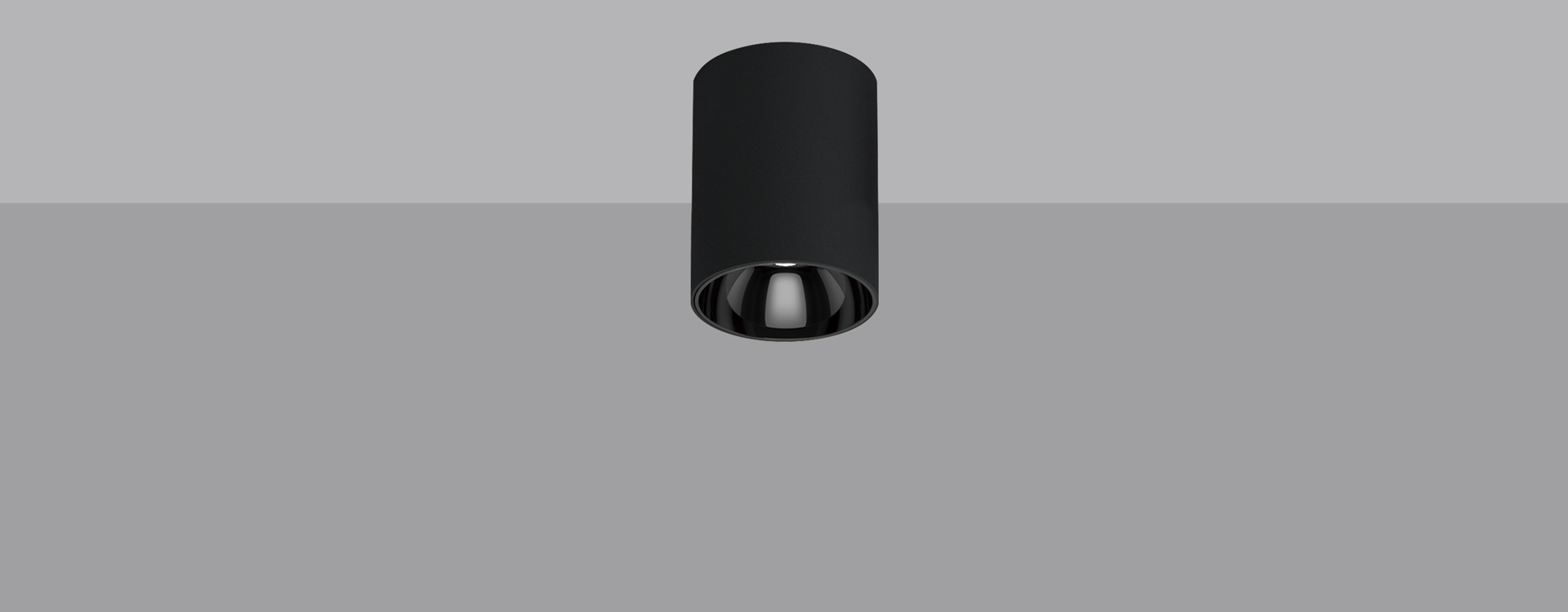

CANO LED Surface Downlight
CANO LED surface downlight is with fashionable and elegant design, using latest new LED technology. It's widely used for shopping mall, lobby, corridor, exhibition & display area and etc… Die-casting aluminium housing. White and black powder coated finishing. High efficiency optic. LED driver is connected remotely. Easy for installation and maintenance.
Product specifications
Luminaire Type:CANO LED Surface Downlight
Luminaire Code :83010070
Input Voltage:220-240V
Wattage:10 W
Beam Angle:20°/40°/60°
Materials :Aluminum
Finish:Powder coated finish
Product Features
Line diagram
Optional Accessories
Reflector color
Frame Color
TYPE
Power
- Power
- 10
Beam Angle
- Beam Angle
- 20
- 40
- 60
CRI
- CRI
- >90
Color Temperature
- Color Temperature
- 2700
- 3000
- 4000
- 5000
Optional Accessories
- Optional Accessories
Dimming Method
- Dimming Method
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
Frame Color
- Frame Color
- Black.png
- Grey.png
- White.png
Reflector Color
- Reflector Color
Protection Grade
- Protection Grade
- IP 65
Model
83010070
83010070
83010070
83010070
83010070
83010070
83010070
83010070
83010070
83010070
83010070
Luminous
Flux
Flux
(LM)
754.9
787.6
715.4
790.3
824.5
748.9
837.5
835.0
793.6
872.8
910.7
Power
(W)
10
10
10
10
10
10
10
10
10
10
10
Beam
Angle
Angle
(°)
20
40
60
20
40
60
20
40
60
20
40
CRI
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
Color
Temperature
Temperature
(K)
2700
2700
2700
3000
3000
3000
4000
4000
4000
5000
5000
Specification
IES
Instruction
Manual
Manual
