ARCHLINE-Exterior-Shanghai RECO Lighting Manufacture Co.,Ltd.

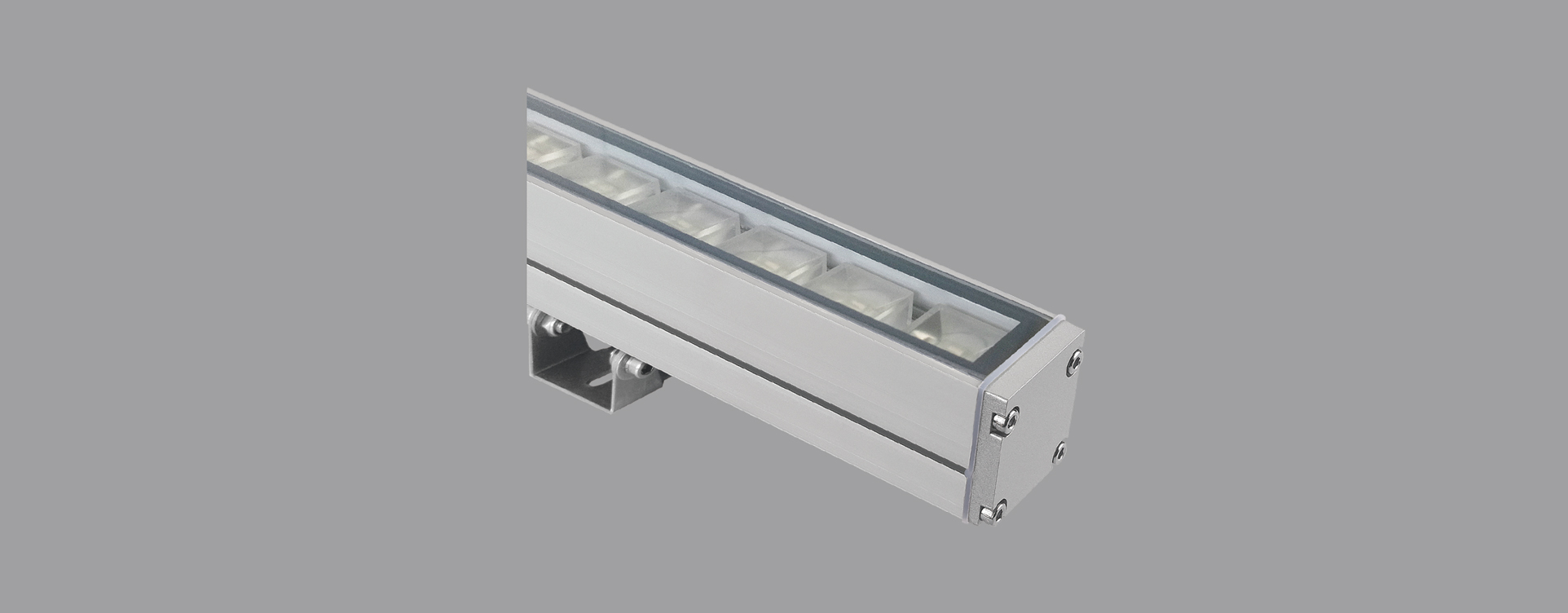

ARCHLINELED Linear Light
ARCHLINE led wallwasher linear light is with high light intensity, rich light distribution options, good color mixing and perfect wallwasher function, become the first choice for outdoor architecture and landscape lighting solution. Simple and practical, square shape and slender design, waterproof and reliable structure. It has several kinds of LED type, super bright LED, super highlight LED, high power LED; it is applicable for beautifying the building, bridge, ancient architecture and etc... Extrusion aluminium housing with anodized finishing, compact oxide film on surface can effectively prevent corrosion. Ultra-white tempered glass cover, high transmittance can effectively reduce light loss. Adopt CREE professional outdoor RGBW four-in-one LED, with uniform & soft light and brilliant color.
Built-in DMX flicker-free intelligent IC, stable circuit and more efficient output. Fully sealed waterproof structure, it can effectively prevent water infiltration
through rigorous waterproofing test. Adopt reliable heat dissipation design, product is more stable, with longer lifetime. Different length is on request. Adjustable angle: ±90 °. Mounting bracket can be tailor-made according to the situation and condition of the installation requirement on site. Easy for installation and maintenance.
Product Specification

Luminaire Type:ARCHLINE LED Linear Light

Luminaire Code :88081520/88081521/88081522

Input Voltage:DC 24 V

Wattage:24W/36W/45W

Beam Angle:10°/15°/30°/60°/15*30°/15*80°

Materials :Aluminum

Finish:Anodized

Product Features
Dimension Figure
Optional Accessories
Reflector Color
Frame Color
Type
Power
  • Power
Beam Angle
  • Beam Angle
CRI
  • CRI
Color Temperature
  • Color Temperature
Optional Accessories
  • Optional Accessories
Dimming Method
  • Dimming Method
  • 5-DMX512
Frame Color
  • Frame Color
  • Grey.png
Reflector Color
  • Reflector Color
Protection Grade
  • Protection Grade
  • IP 66
Model
Luminous
Flux

(LM)

Power

(W)

Beam
Angle

(°)

CRI
Color
Temperature

(K)

Specification
IES
Instruction
Manual
Collect
Project
